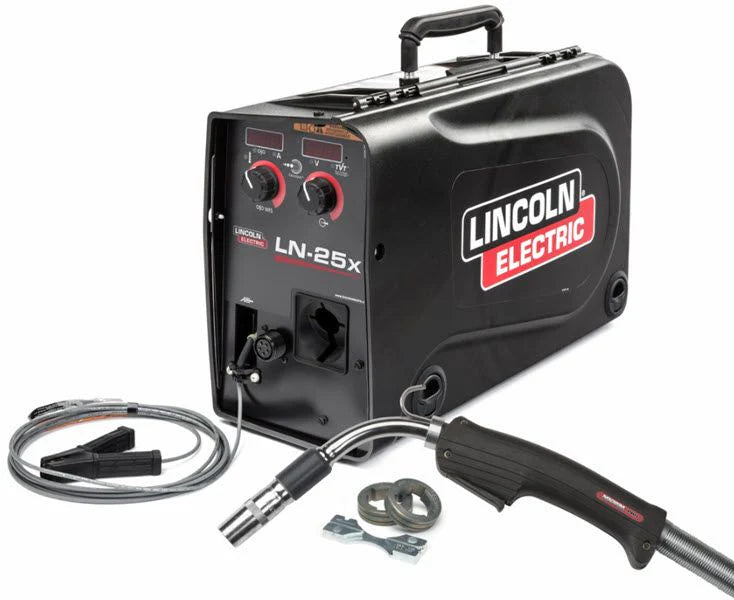

Lincoln® LN-25X® Wire Feeder w/CrossLinc® & Magnum® PRO Curve 300 amp MIG Gun K4266-1

The Lincoln® LN-25X® Wire Feeder with TVT™ and Magnum® PRO Curve 300 MIG gun is a voltage sensing MIG wire feeder that has full remote voltage and amperage control without the use of a remote-control cable. Built-in CrossLinc® technology allows the LN-25X to communicate directly with a CrossLinc® equipped Lincoln welder through the welding leads, eliminating the need for costly remote-control cables. CrossLinc® remote control distance is limited only by the length of your welding cable leads. CrossLinc® allows your MIG or Flux-Cored welding operation to take place further away from the welding power source and reduces downtime and costs by giving the operator full remote voltage AND amperage control capabilities at the site of the weld without using expensive remote-control cables. The LN-25X can also be used as a traditional voltage sensing feeder on welders not equipped with CrossLinc®

The LN-25X also comes standard with TVT™. True Voltage Technology compensates for voltage drops common with long welding cable runs. TVT automatically detects welding voltage variations and adjust on-the-fly, to provide a smooth consistent arc, even if you are far away from the welder itself. (Please note: your welder MUST be equipped with CrossLinc® to take advantage of TVT™). The LN-25X wire feeder has up to a 450 amp welding capacity. It features Lincoln's MAXTRAC® wire drive system to ensure smooth wire feeding and excellent electrical contact with your welding gun. It comes complete with Magnum® PRO Curve 300 amp MIG gun with 15 foot leads and .045 drive rolls for cored-wire.

Processes

• MIG (GMAW)
• Flux Cored (FCAW)

  Applications
  Construction & Field Erection
  General Fabrication
  Heavy Equipment
  Heavy Fabrication
  Structural Fabrication

  Features:
• CrossLinc® with TVT™ technology - CrossLinc® uses the existing weld cable to communicate voltage control information between the feeder and Lincoln® CrossLinc® power source. This eliminates the need for a separate remote-control cable. TVT™ (True Voltage Technology) automatically compensates for voltage drops commonly associated with long welding cable runs.

• Includes Magnum® PRO Curve 300 MIG Gun.
• Tachometer feedback ensures accurate wire feed speed
• Trigger Interlock Switch Provides operator comfort for long welds
• Maxtrac® Wire Drive System Heavy-duty cast aluminum wire drive system provides reliable feeding and durability

• Replaceable and Flame Resistant Case Protects internal components, easy to replace
• Potted PC Boards For moisture and corrosion protection
• Split Wire Guide - Reduces birdnesting and allows for easy cleaning no-fuss wire guide alignment
• Bright digital meters for easy viewing even in bright sunlight
• Included Tweco style male connector on input power cable.
• Weld Timers Pre-Flow, Post-Flow, and Burn Back
• Adjustable Wire Run-In Speed for softer starting
• Configurable for English or metric units
• Arc Hours Meter
