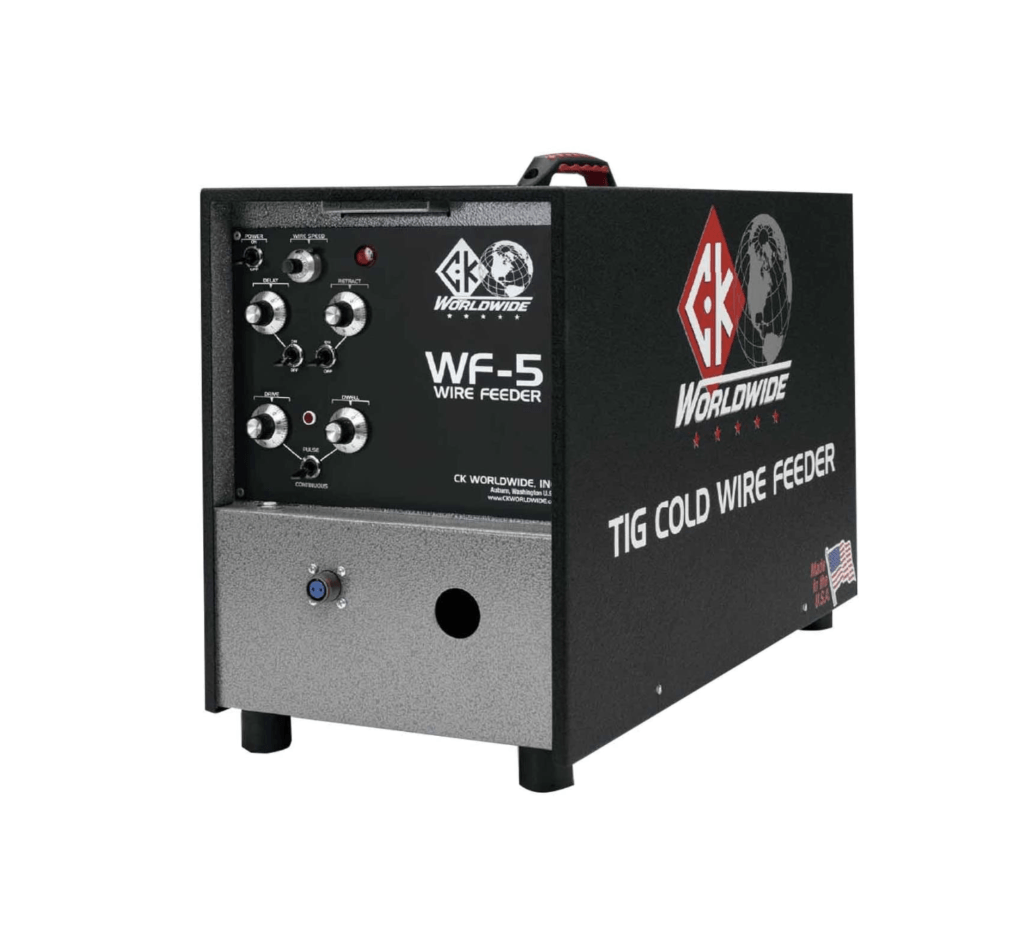

CK Worldwide Cold Wire Feed Unit (WF-5)

$ 3,550.00
SKU CK-WF5-030
Same day shipping on orders placed Mon-Fri by 1pm Eastern.
Wire Size Options
Availability: Translation missing: en.general.icons.icon_check_circle icon 1000 in stock, ready to be shipped

Notify me when back in stock

Description

Cold Wire Feed Unit

This is only available for shipping in the USA 🇺🇸

Automate the addition of filler metal with the touch of a button using the WF-5 Cold Wire Feeder. This machine works independently to provide continuous filler metal for your TIG welding needs.

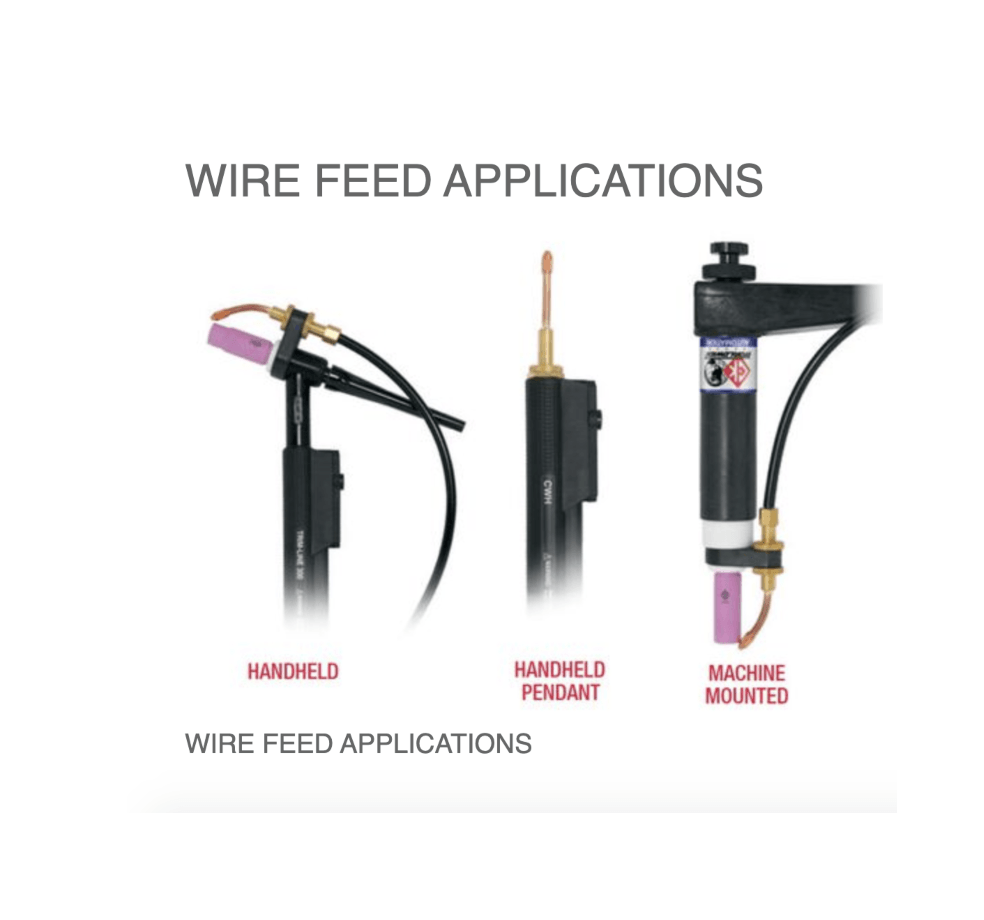

CK Worldwide's revolutionary WF-5 cold wire TIG system works independently of a standard TIG power supply using normal TIG welding parameters. For complete installation of this system, you need both the cold wire feeder and a TIG torch (hand held or machine mounted). The WF-5 has an on-off switch, pilot light, pulse/continuous feed switch, pulse wire on-off timers, remote switch receptacle, delay wire start and wire retract.


Benefits
• Automates adding filler metal in TIG welding
• All weld parameters can be duplicated
• Dual groove drive roll system accepts multiple wire sizes
• Eliminates TIG rod stub loss
• Cabinet keeps filler wire clean
• Makes fully automatic TIG welding possible
• Results are consistent and high quality

Quick Specs
• Voltage - 115V
• Single phase
• Frequency - 50/60 Hz
• Dims - 15in H x 10in W x 21in L
• Weight - 54lbs
• Motor type - DC permanent magnet
• Motor rating - 1/3 HP at 4,000 rpm
• Filler wire spool size - 12 in
• Filler wire size - .023 - 1/16
• Wire feed speed range - 0-500 ipm

TIG Torch Sold Separately.

  • Increases productivity
  • Automates adding of filler metal
  • All parameters can be duplicated for consistency
  • Dual groove drive roll accepts multiple wire sizes
  • Accepts standard wire spool sizes
  • Eliminates filler rod stub loss
  • Machine cover keeps filler metal clean and uncontaminated
  • Makes fully-automated, or one-handed, TIG welding possible

WF-5 SPECIFICATIONS

Voltage | 115V AC (220V AC 50 hz. —Special Order)
Phase | Single Phase
Frequency | 50/60 Hz.
Height | 15" (38.1cm)
Width | 10" (25.4cm)
Length | 21" (53.3cm)
Weight | 54 lbs. (24.5kg)
Filler Wire Spool Size | 12" (30.5cm)
Filler Wire Sizes | 023" (.5mm), .030" (.8mm), .035" (.9mm), .045" (1.1mm), 1/16" (1.6mm)
Wire Feed Speed Range | 0–700 in/min (0–1,775cm/min)
Feed Time (pulsed mode) | continuously variable
Dwell Time (pulsed mode) | continuously variable
Delay Start Time | continuously variable
Wire Retract Time | continuously variable
