This Stubby TIG Hardware Bundle Includes a CK Stubby Gas Lens Kit, a Tig Finger®, and a Tig Finger XL®, all for $100.00!

Have a #17 or #26 Tig Torch? Wish it was smaller?

Our Stubby Gas Lens Kit fits all #17 and #26 Series TIG torches (The BIG style Tig torches). Now you'll be able to squeeze into those tight spots with small gas lens style cups normally used on a 9 or 20 Tig torch! Additionally, you'll get a free Instructional Bonus DVD when you buy this kit here at The Weldmonger Store!

Note: *kit is not compatible with a #9 or #20 torch*

(Don't have a #17 or #26 style torch? Check out the Weldmonger TIG Hardware Bundle here.)

This Kit Includes:

1/16", 3/32" & 1/8" ( 1.6mm, 2.4mm, and 3.2mm) size collets and gas lens collet bodies
3 aluminum cups (#6, #7, #8 size)
Heat shield adapter
Short and long back cap
2% lanthanated electrodes in 1/16", 3/32" & 1/8" sizes ( 1.6mm, 2.4mm, and 3.2mm)

Additional Features:

You can shorten the total length of a big torch by over half with this kit, and the small back cap, and help get into those tight spots! This kit fits all 17 & 26 Series Air Cooled torches, including the Lincoln PTA-17 and PTA-26 torches, Miller Diamondback DB17 and DB 26 torches, along with the Weldcraft LS-17, WP-17 and WP-26 torches. Fits imported torches, also.

Here's What Jody Has to Say:

"The most common TIG torch is an air cooled #17 style torch. It's what I learned with, and it's fine for practicing welding on a bench where nothing is in your way. But as soon as you start tackling real jobs, you realize that something is almost always in your way.

Whether it's a cluster joint with a tight angle on a roll cage, or a doubler on the inside of a piece of square tubing, or making a weld on a boiler tube where other tubes are only an inch away, a Stubby Gas Lens Kit turns a big torch into a much smaller torch that can still handle the amperage.

The gas lens will give you better gas shielding than the standard cups, too.

So your stainless welds will look better."

If you have ever used a small style TIG torch (a #9 air cooled, or a #20 water cooled), it's hard to go back to a big torch. A #9 air cooled torch is nice and small but just won't handle welding for very long over 100 amps. A #20 torch is water cooled and you can spend nearly $1000 on a water cooled torch, fittings, coolant, and cooler.

Benefits of the Stubby Gas Kit:

Affordability
Simple setup of an air cooled torch
Ability to weld at higher amperage than a small #9 torch
Better gas shielding from the gas lens.

This kit is a no-brainer!

______________________________________________________

What Series/Number is my Torch? Knowing the style of your torch takes the guess work out of finding consumables and replacement parts.

2 Series(#9/#20): torches includes 9, 20, 100, 110, 130, 200, 230FL2L, CKM230, CWH230, WCM230 torches and other popular torches of Weldcraft, Lincoln, WeldTec and Profax with similar models.

3 Series(#17/#18/#26): torches include 17, 18, 26, 150, 210, 300, 510, Trimline, FL3L, CKM350, CWHTL300, CWH350, CWM350 and other popular torches of Weldcraft, Lincoln, WeldTec and Profax with similar models.

If you need any more help finding out what style torch you have, give us a call now at (833)-308-7018

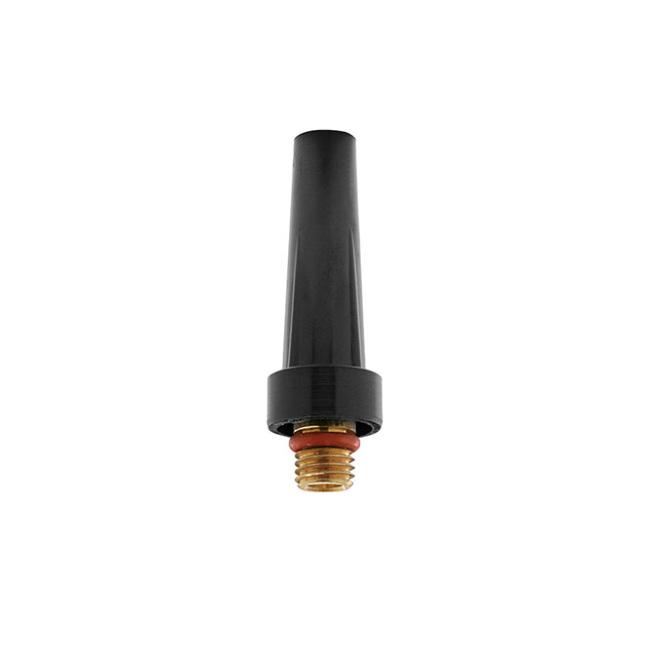

CK Worldwide Medium Back Cap with O-Ring 200M (41V35) for 9/20 Style Torches (2 Series) - 2 pack

| Weldmonger Store (USA) |

$ 10.99

Genuine CK Worldwide Parts. 9/20 Style Torch Back Caps.

Comes with:

2 - MEDIUM 200M (41V35)
