Fireball Tool Magic Square – Adjustable Welding & Fabrication Square

The Fireball Tool Magic Square is an incredibly versatile adjustable welding and fabrication square designed to handle everything from standard 90° fit-up to custom angles, offset positioning, round material, and complex fabrication setups.

What makes the Magic Square different? It isn't just one square.

The system consists of two individual fabrication squares that can be used separately or connected together in multiple configurations. Adjust the angle, reverse the mating surfaces, separate the two halves, or reassemble them to match the job in front of you.

One tool. Multiple configurations. A whole lot of possibilities around the welding table.

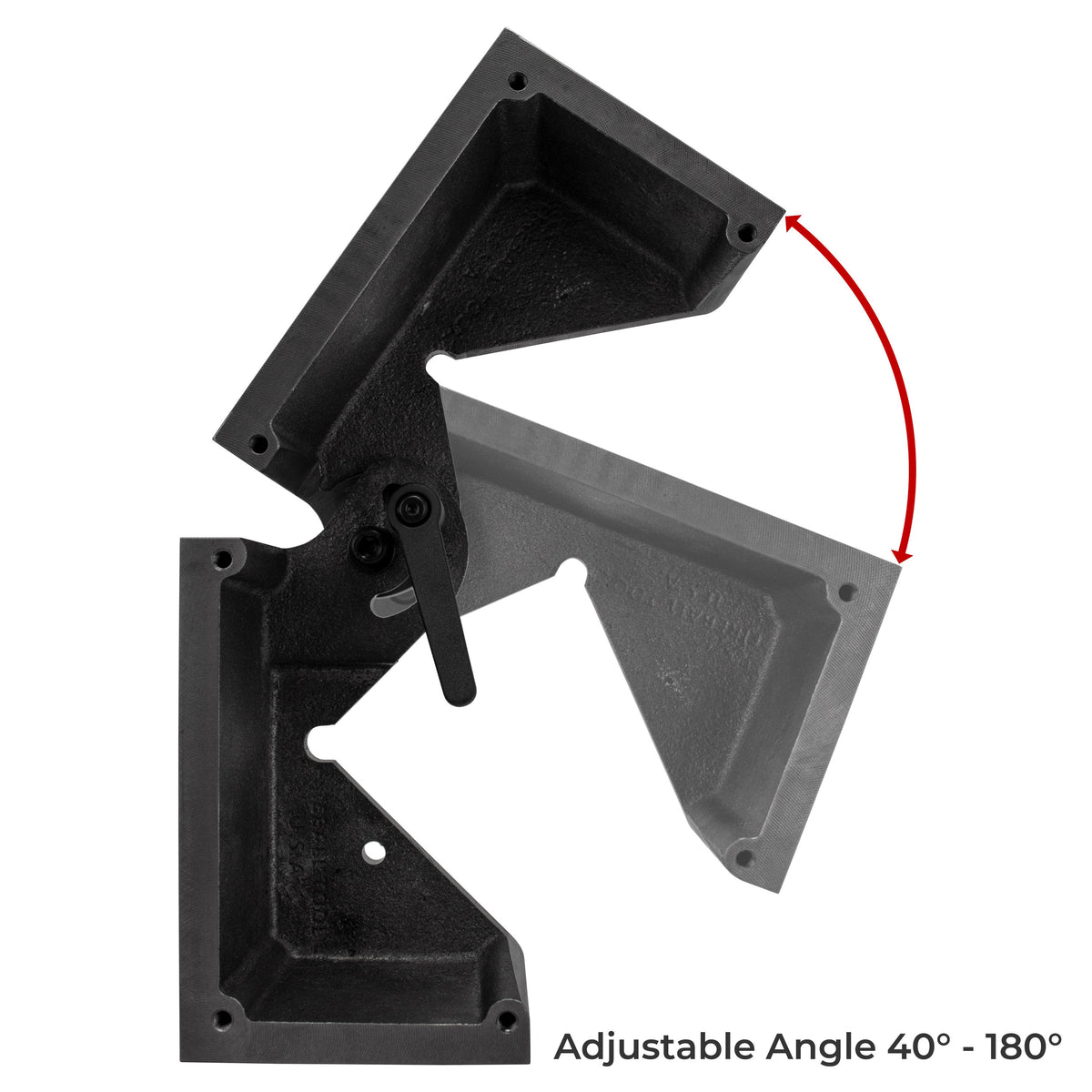

An Adjustable Welding Square from 40° to 180°

Fabrication isn't always 90 degrees.

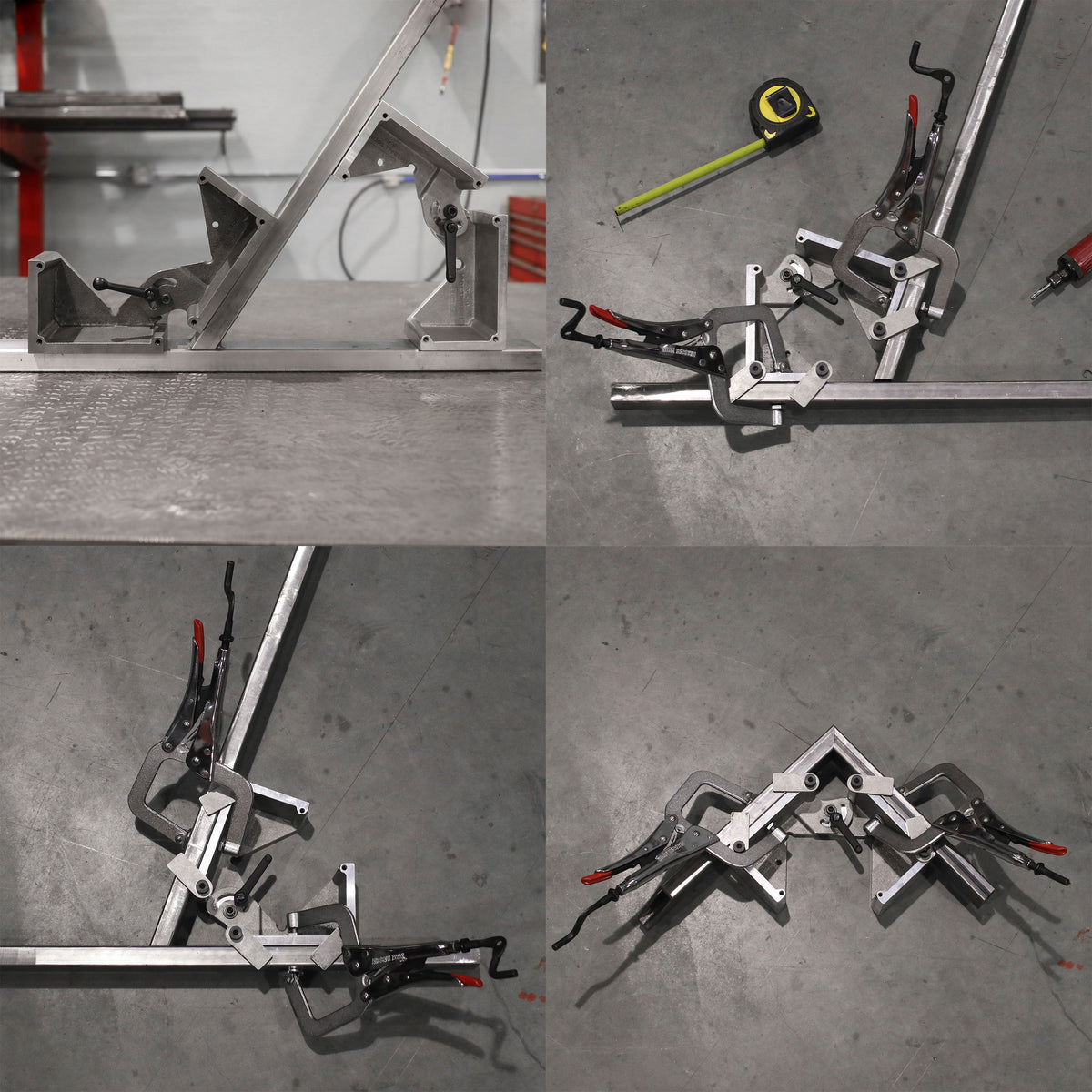

The Fireball Tool Magic Square can function as an adjustable angle square with a range from 40° to 180°, allowing you to position parts for a wide variety of angled joints and assemblies.

A zinc adjustable handle allows for fast, tool-free angle changes, making it easy to reposition the square as your project changes.

Each angle setting also gives you two useful angles—a primary angle and its complementary angle—providing even more setup options from a single position.

For the most accurate custom angle setup, Fireball Tool recommends using a digital protractor.

Five Different Combination Configurations

The Magic Square earns its name from just how many ways it can be configured.

The two squares can be linked together in five different combination configurations, allowing you to change the shape and working surfaces of the tool depending on the fabrication job.

Use the system to:

• Create standard 90° setups

• Set custom angles from 40° to 180°

• Position material at offset locations

• Change the balance and orientation of the square

• Create parallel reference surfaces

• Support taller fabrication setups

• Separate the system into two individual squares

Instead of forcing one square to work for every job, configure the Magic Square around the workpiece.

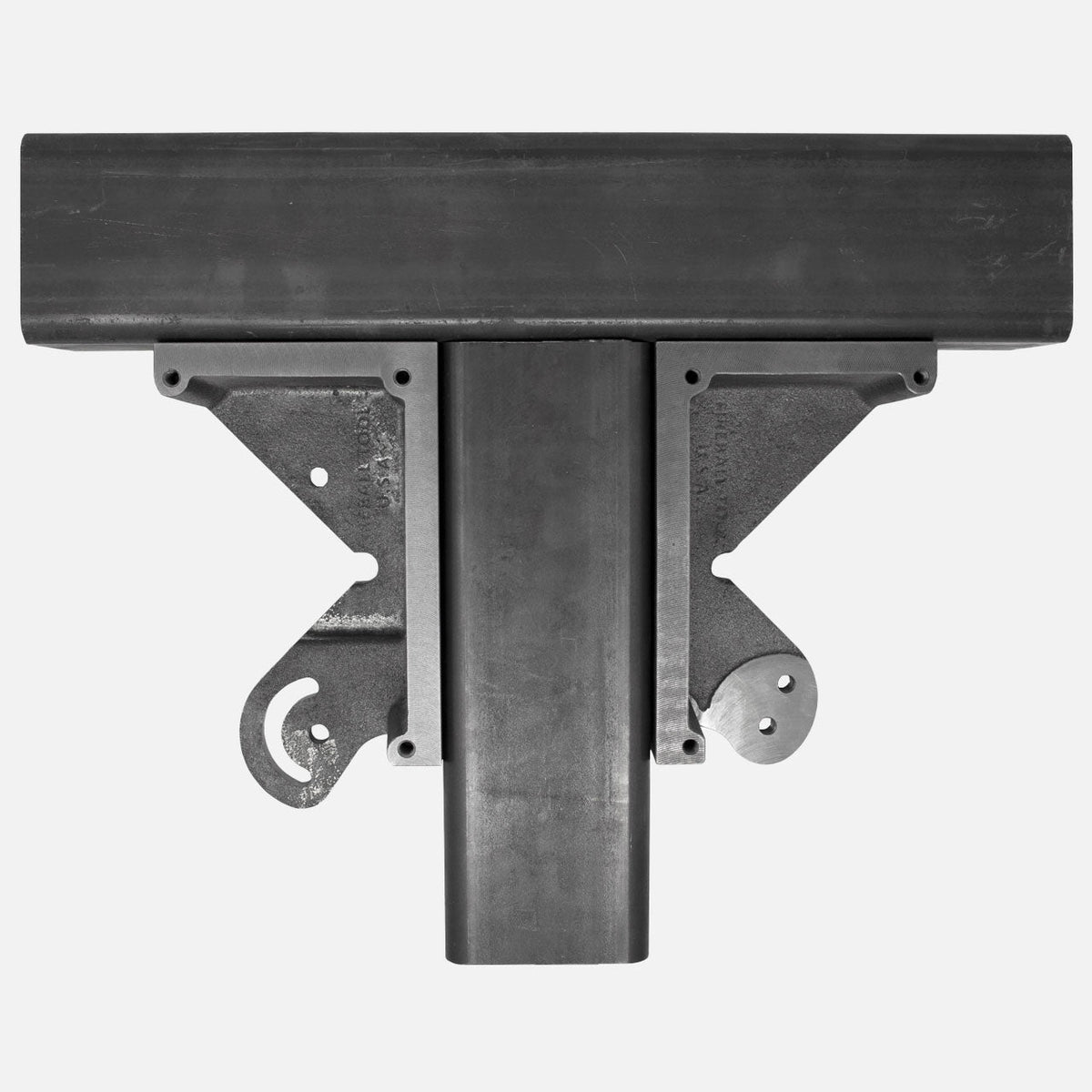

Separate Them Into Two Individual Welding Squares

Remove the fasteners and the Magic Square separates into two individual fabrication squares.

This gives you two independent reference tools for positioning parts, supporting assemblies, or working at multiple points on a larger fabrication project.

When you need the full Magic Square again, simply reconnect them.

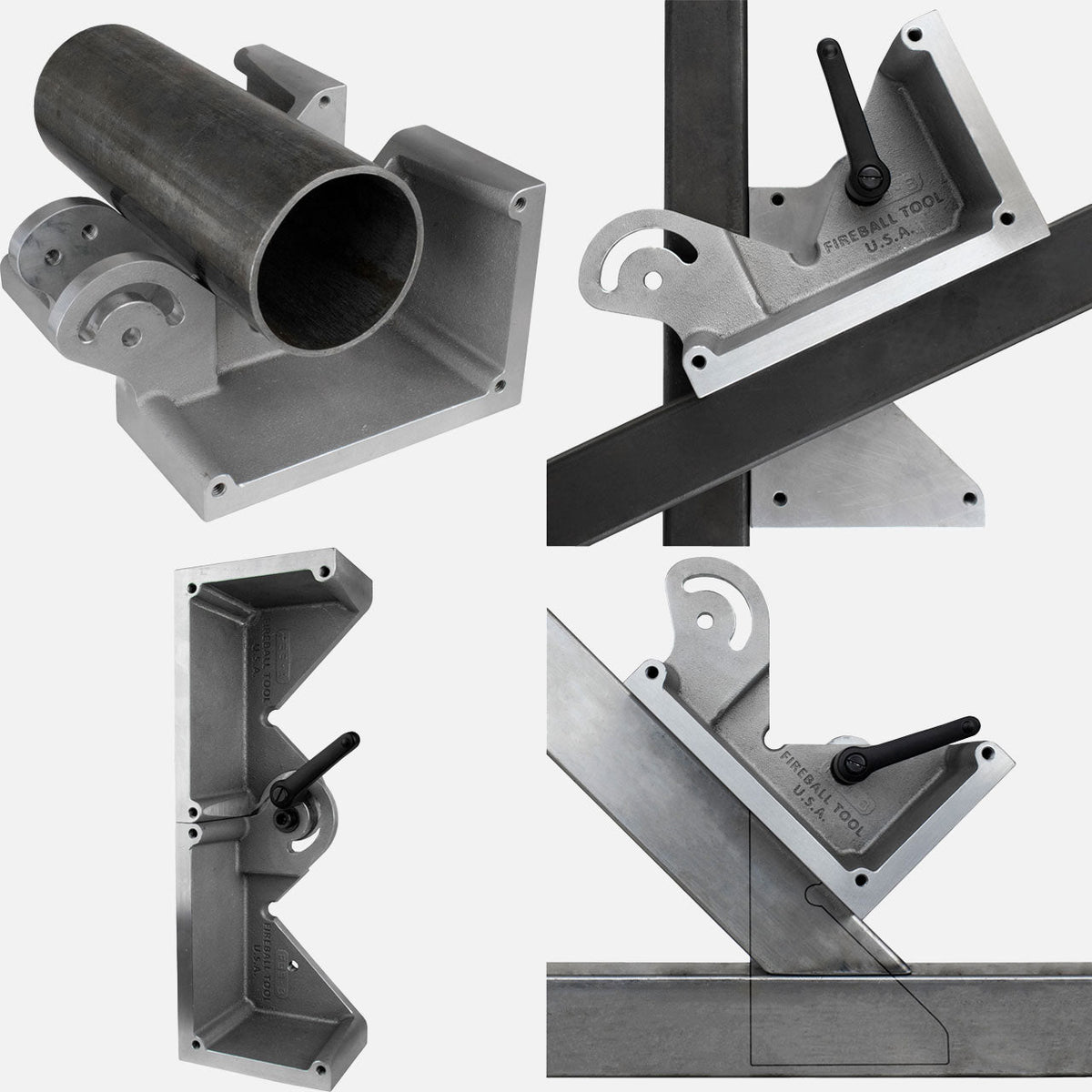

Use Them as V-Blocks

Working with tubing or pipe?

Separate the two halves and the Magic Square can function as V-blocks for holding round material.

The shape helps cradle tubing and other round workpieces, giving you another useful positioning option during fit-up, layout, and welding.

That versatility makes the Magic Square useful for shops that regularly move between square tubing, plate, pipe, and other fabricated components.

Offset Material for Precise Alignment

Reverse the mating surfaces and the Magic Square can hold material in offset positions.

This is particularly useful when parts don't sit flush or when you need to establish a controlled offset between two pieces during fabrication.

Changing the mating surfaces gives you different reference points without having to build a dedicated fixture for every setup.

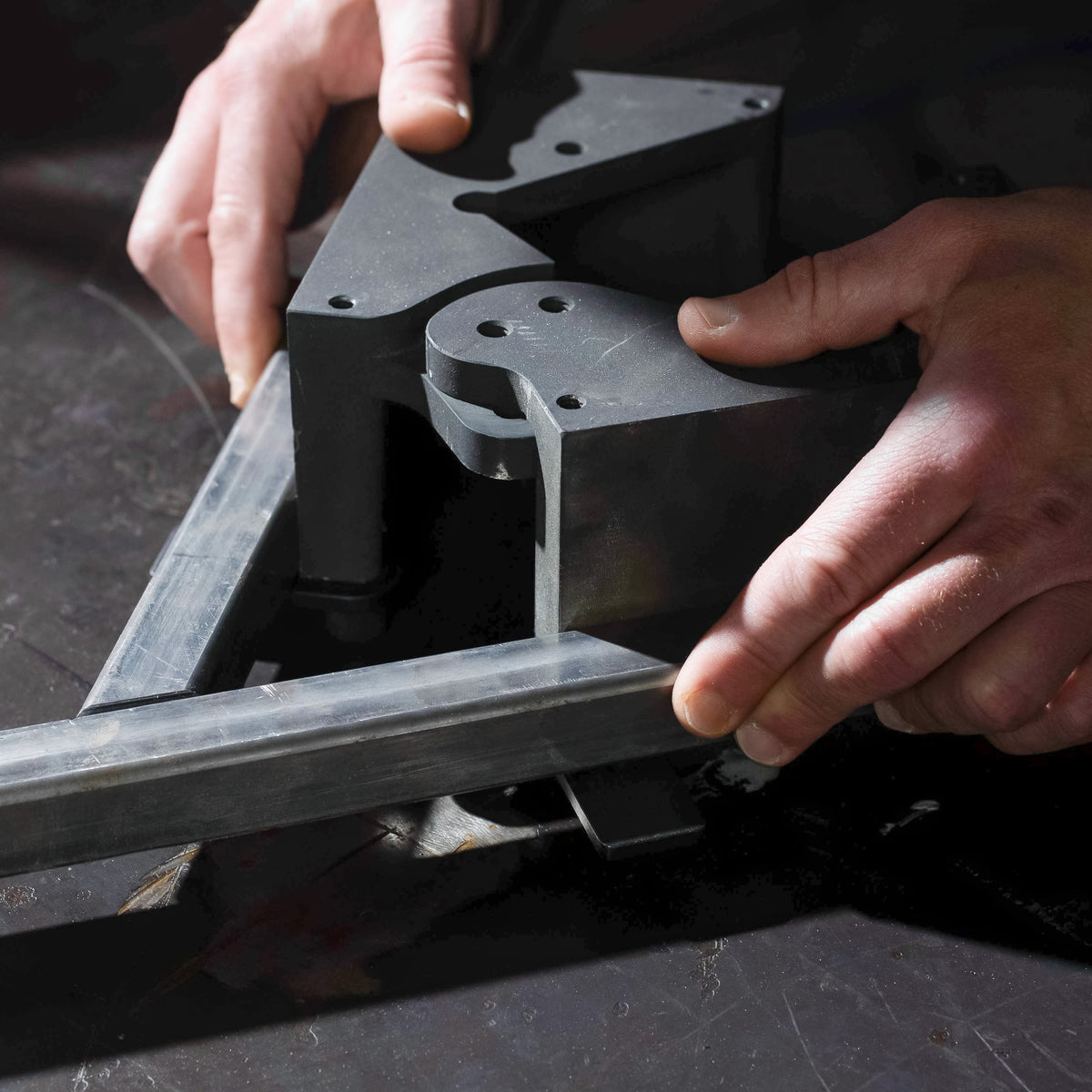

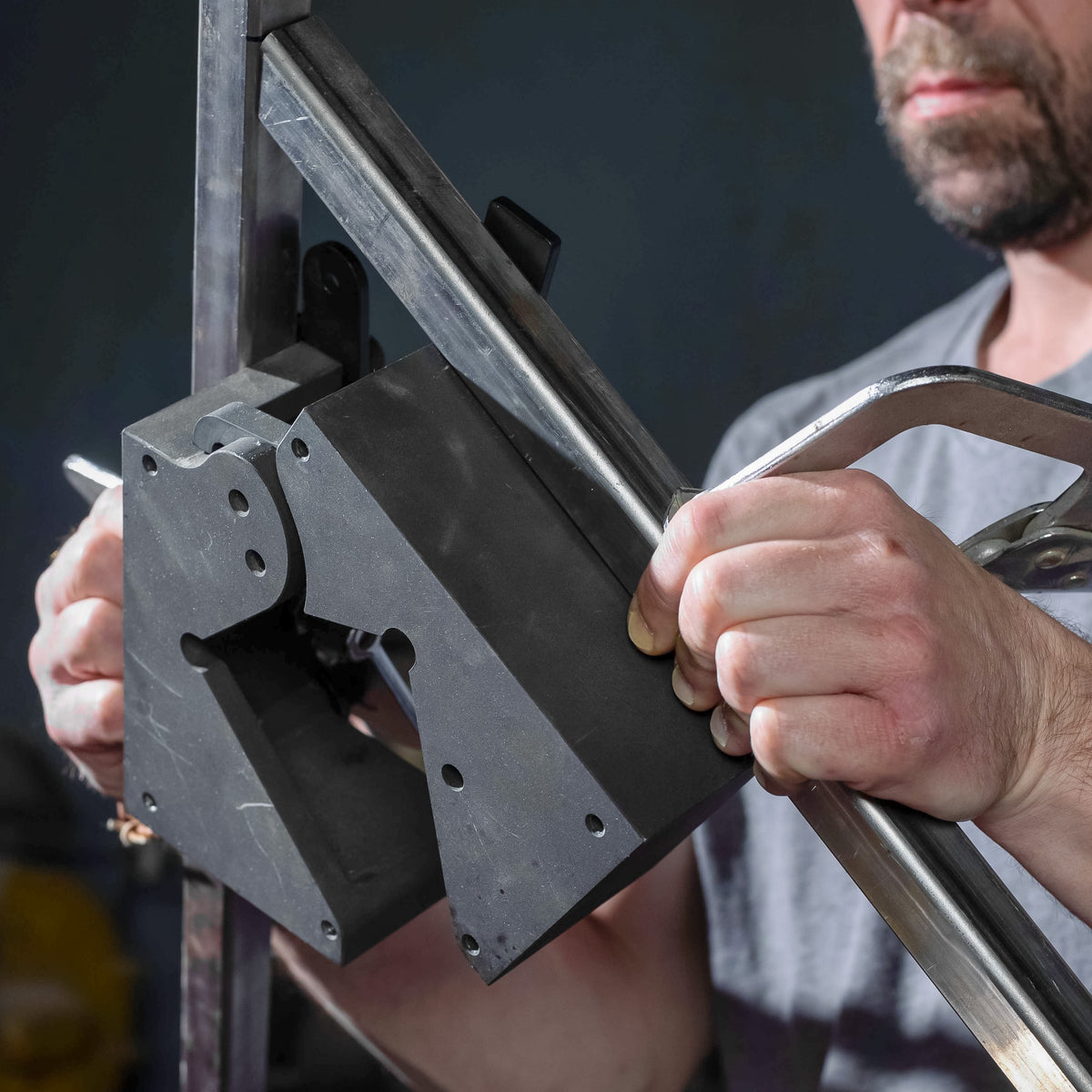

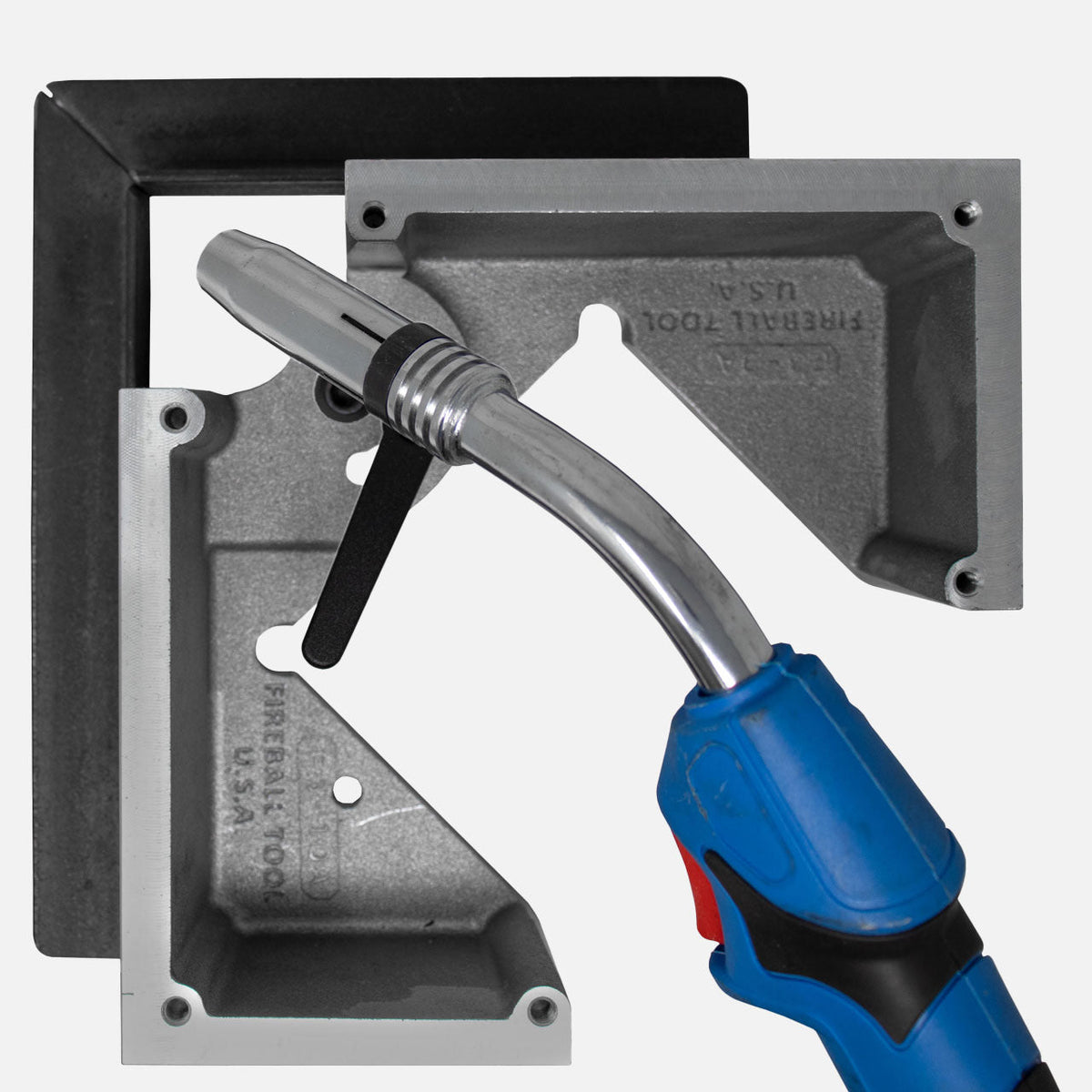

Designed for Weld Access

A fabrication square shouldn't block the joint you're trying to weld.

Fireball Tool designed the Magic Square with plenty of open space around the work area, giving you access for your TIG torch, MIG gun, or electrode while the square maintains the position of your parts.

Set the joint, clamp it in place, tack the assembly, and move on.

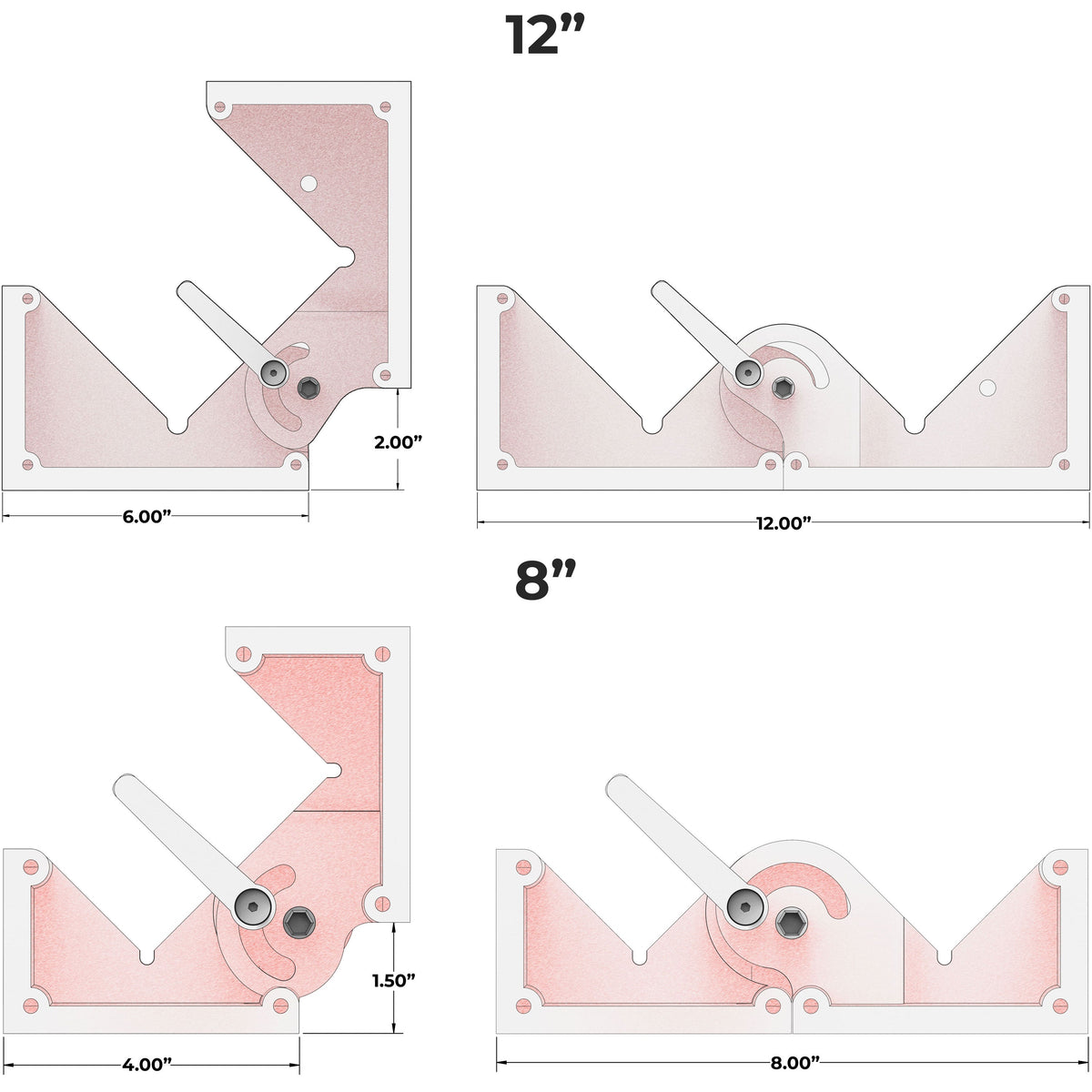

Choose Your Size

The Magic Square is available in two sizes:

Magic Square 8

• Fully Opened Flat Size: 8"

• Available in Cast Iron + Dragon Scale

• Available in Aluminum

• Compact size for general fabrication and smaller assemblies

Magic Square 12

• Fully Opened Flat Size: 12"

• Available in Cast Iron + Dragon Scale

• Available in Aluminum

• Larger working area for bigger fabrication projects

• Made in the USA

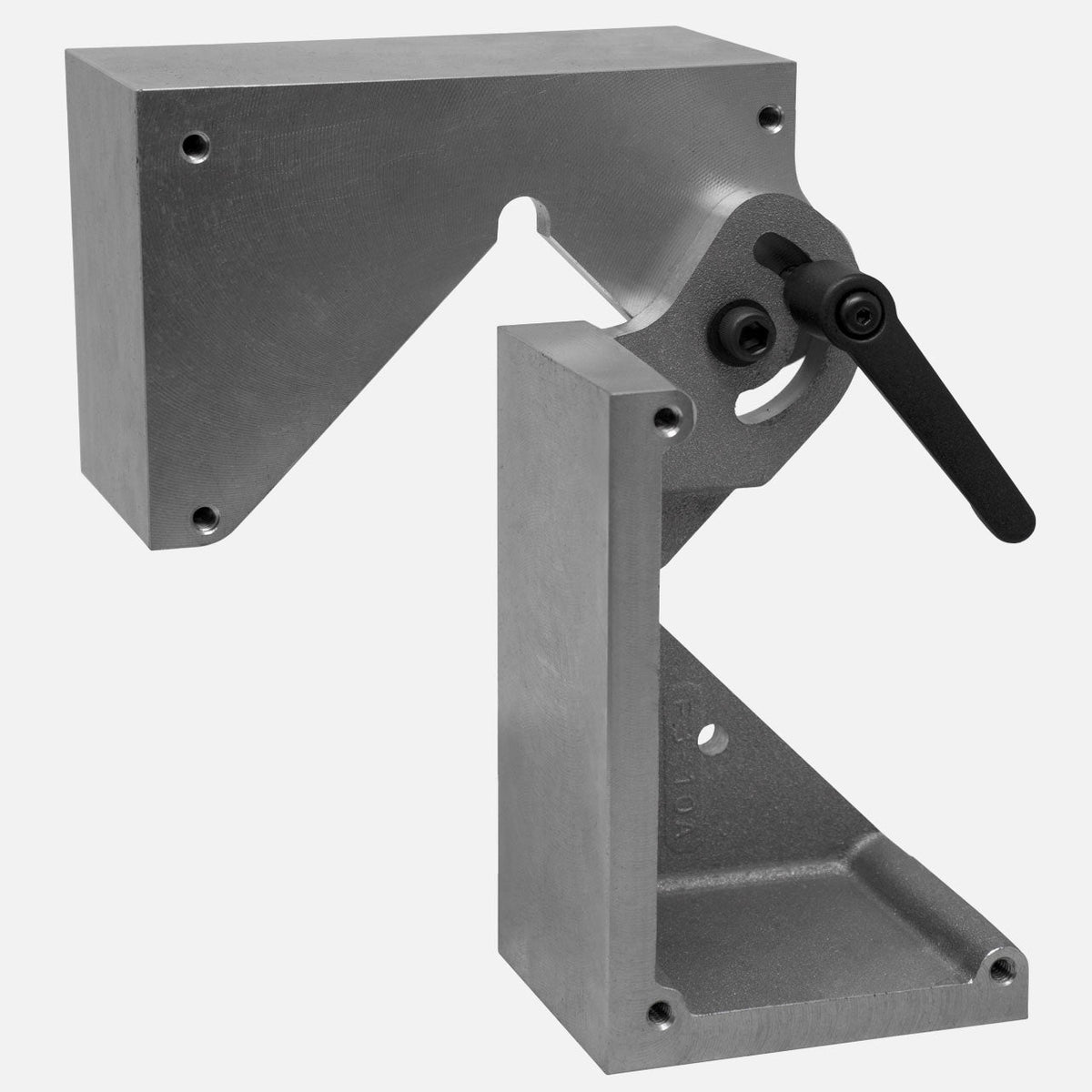

When fully unfolded and locked, the larger configuration can provide up to 12" of height for taller fabrication setups.

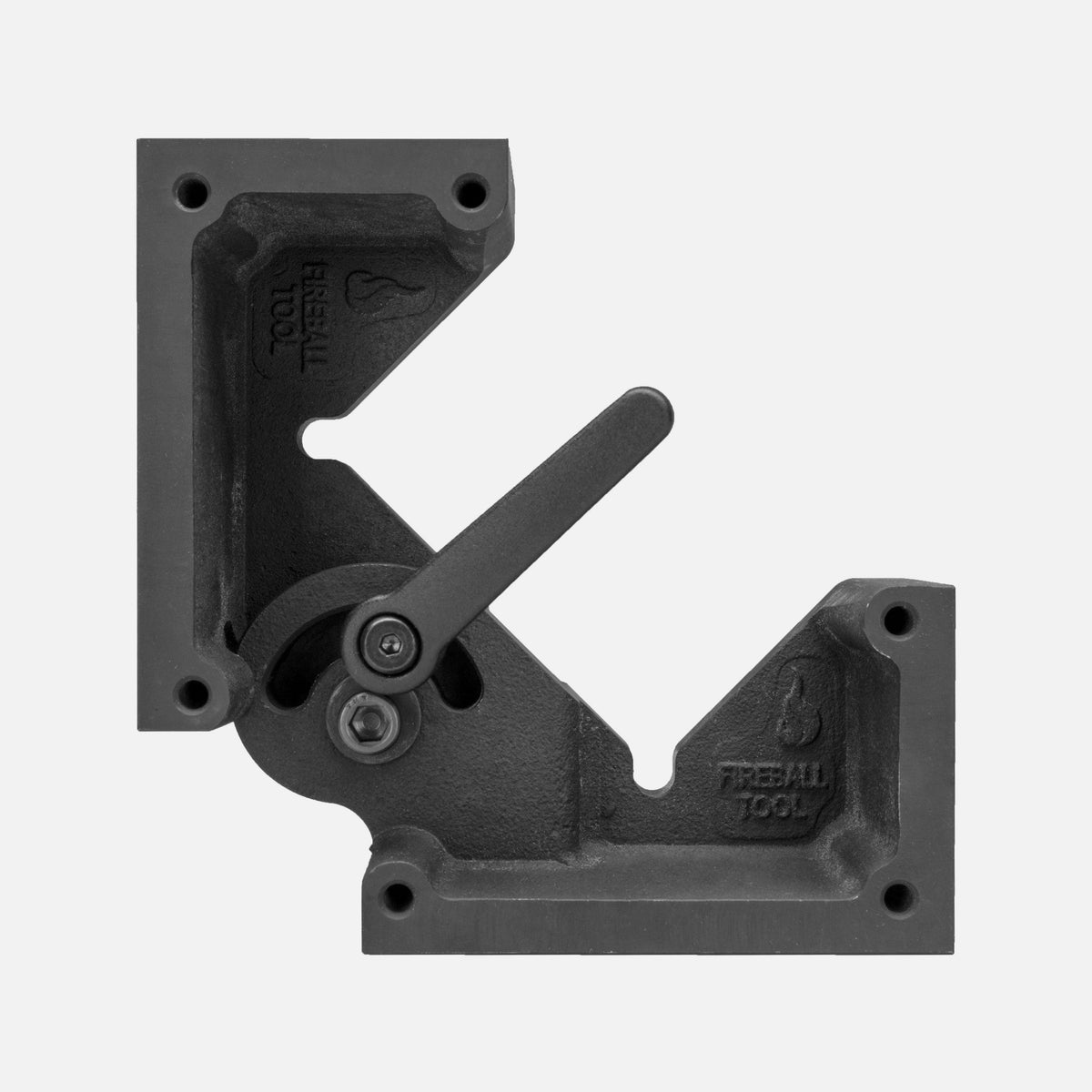

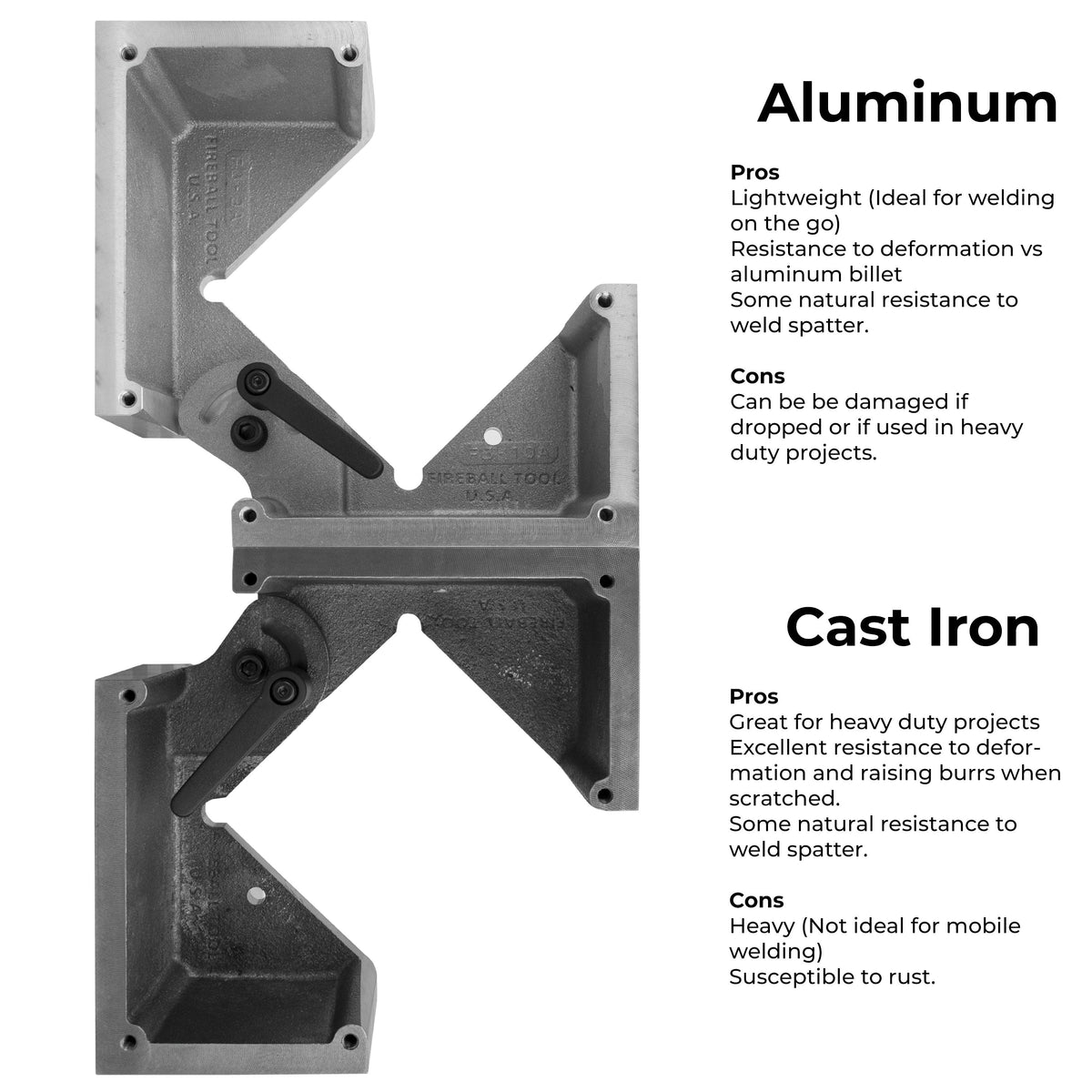

Cast Iron + Dragon Scale

Choose Cast Iron with Fireball Tool's Dragon Scale coating when rigidity and durability are the priority.

The cast iron version is designed for demanding fabrication environments and provides excellent resistance to warping, dents, and burrs.

Fireball Tool's Dragon Scale coating also provides improved resistance to weld spatter and corrosion compared with its previous black oxide finish.

Cast Iron Benefits

• Excellent rigidity

• Built for heavy-duty fabrication

• Highly resistant to warping

• Resistant to dents and burrs

• Dragon Scale spatter-resistant coating

• Improved corrosion resistance

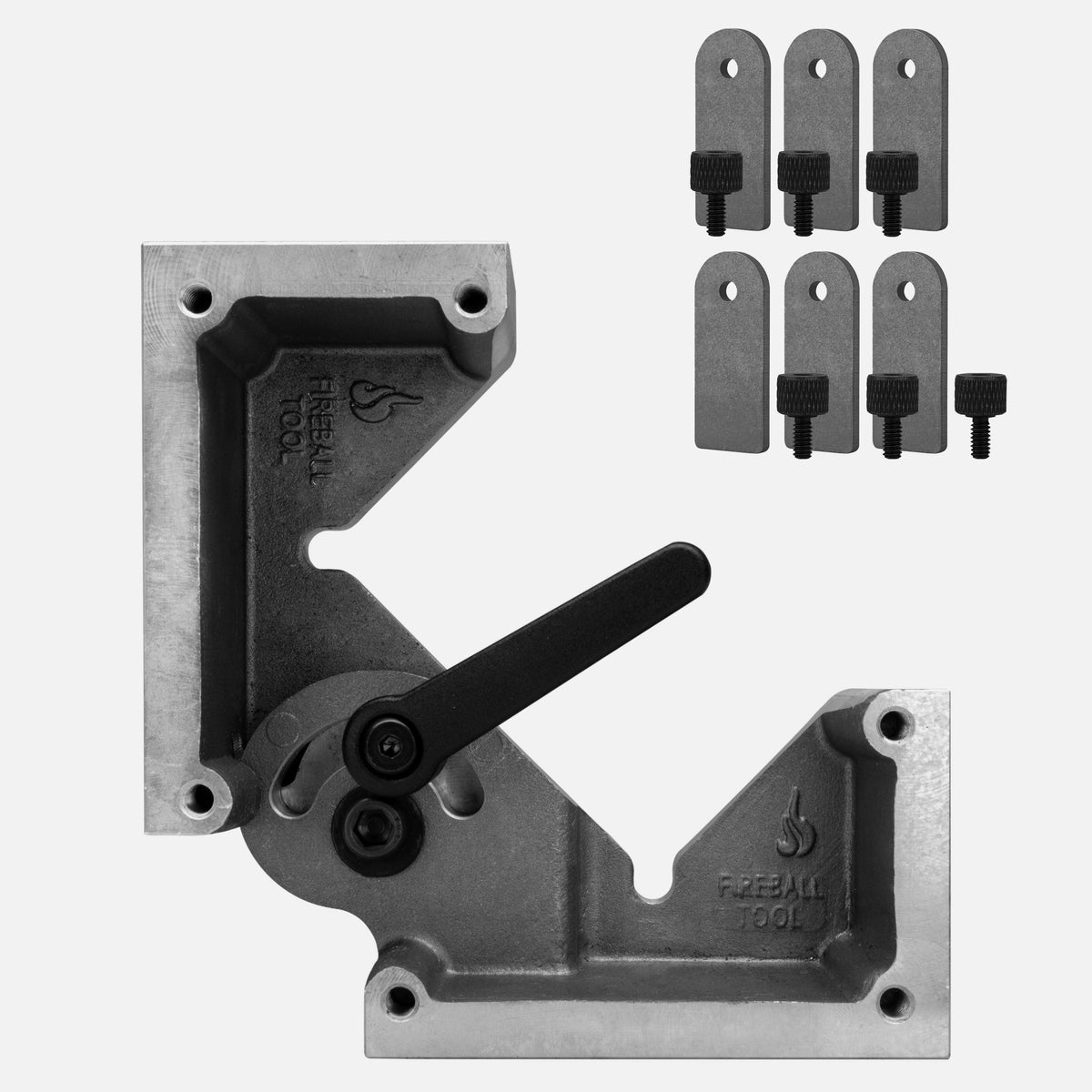

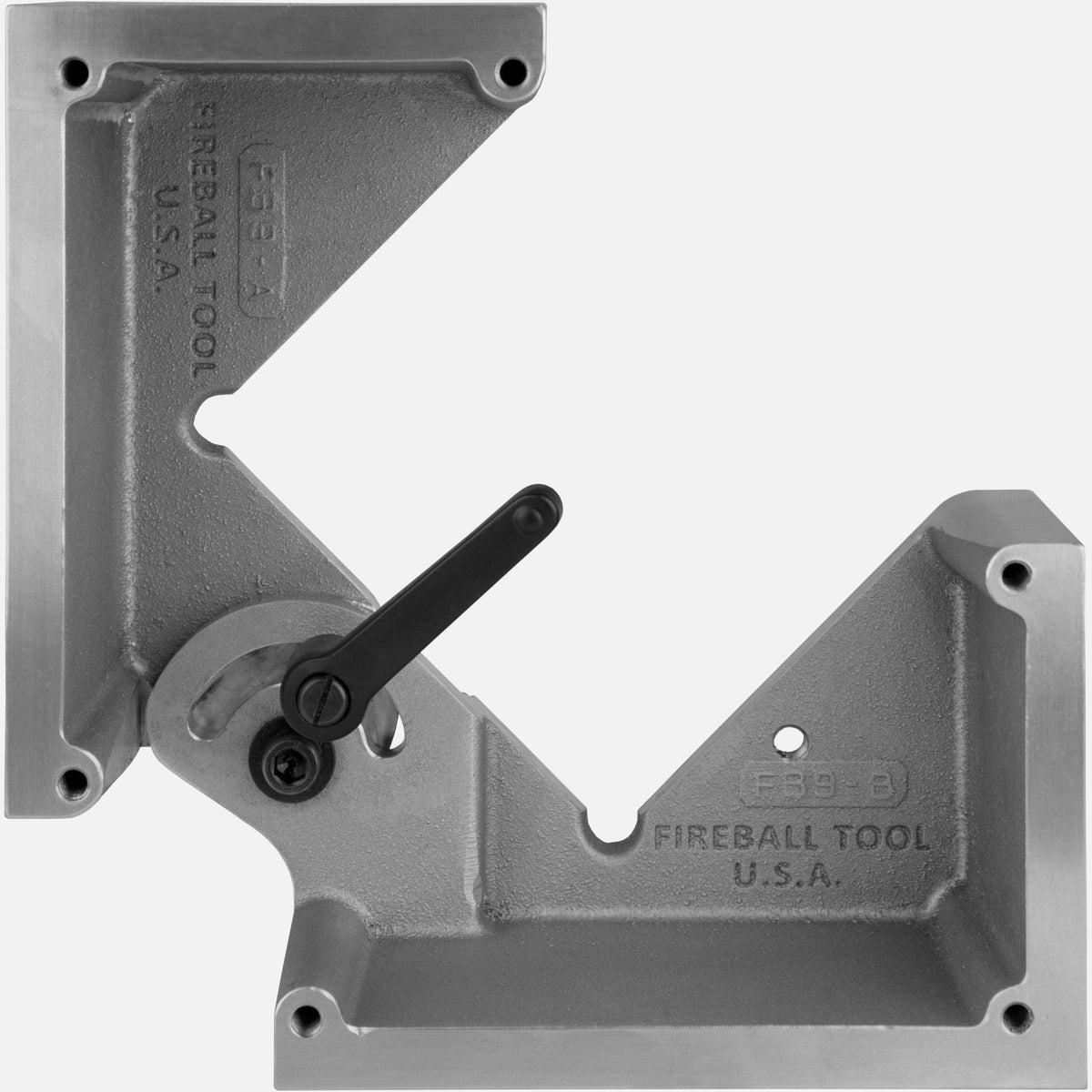

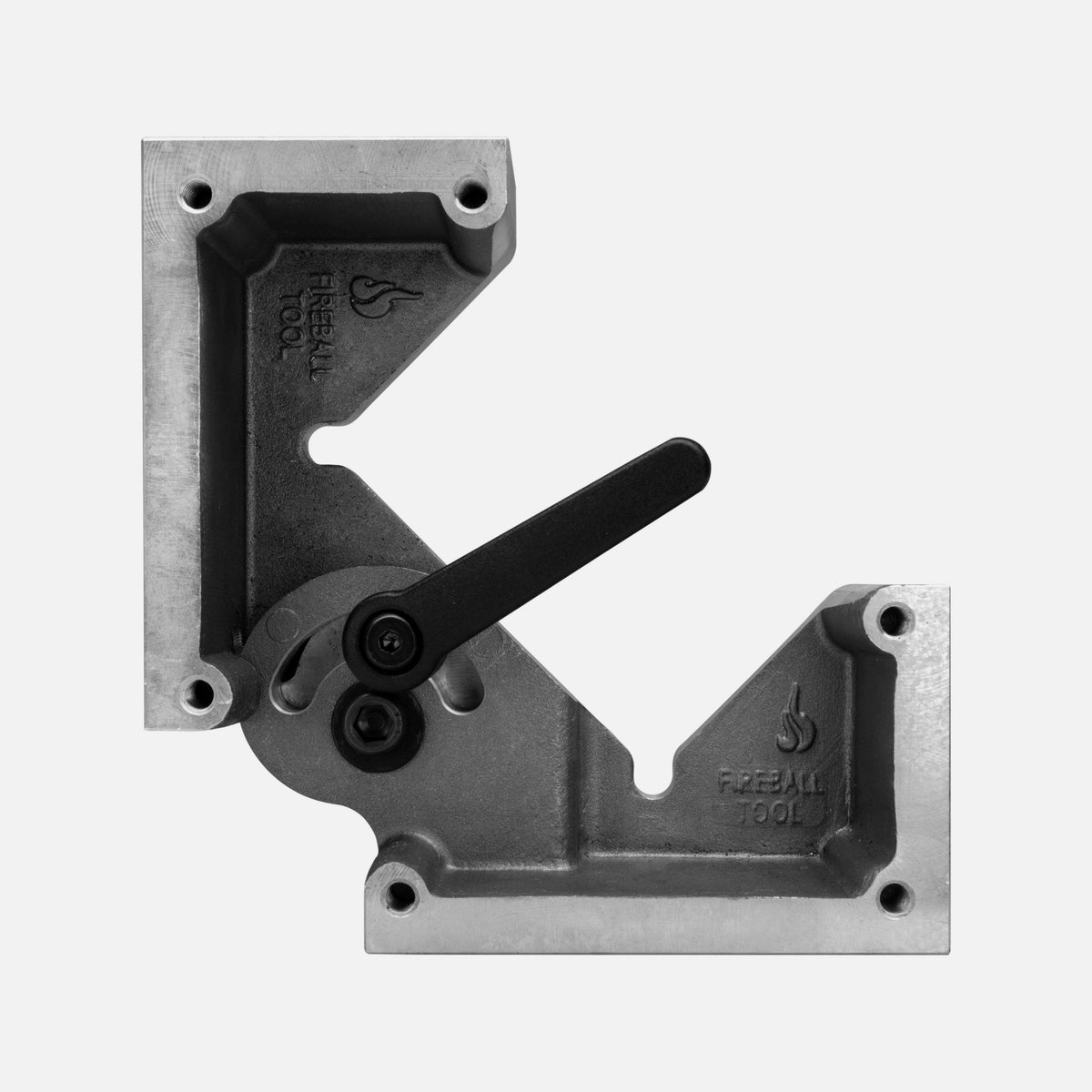

Cast Aluminum

The Cast Aluminum Magic Square provides the same versatile design in a lighter package.

It's a great choice for mobile welding, field fabrication, or anyone who frequently moves their setup tools around the shop.

Aluminum Benefits

• Lightweight

• Easy to reposition

• Great for mobile welding setups

• Naturally offers some resistance to weld spatter

• More resistant to warping than standard aluminum billet

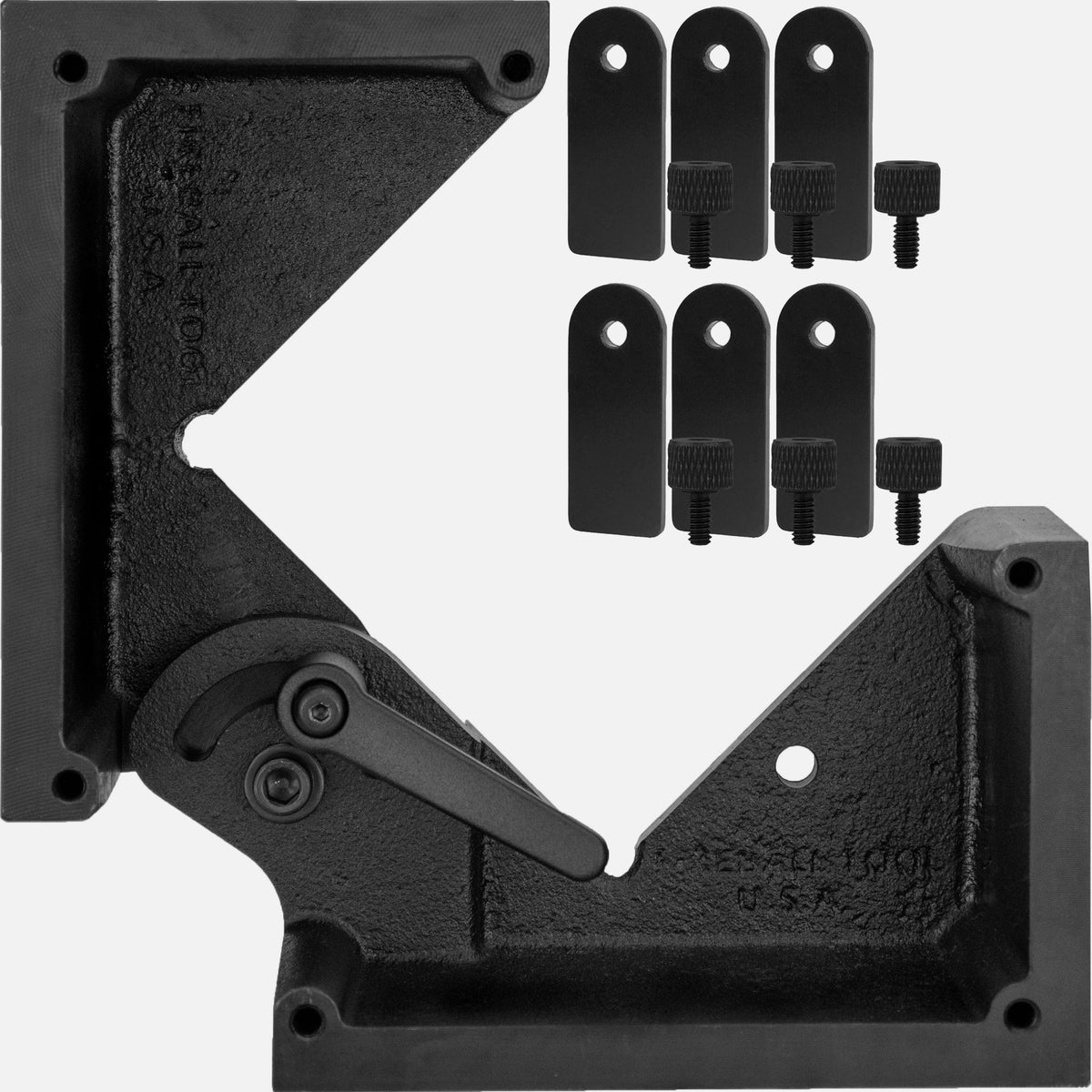

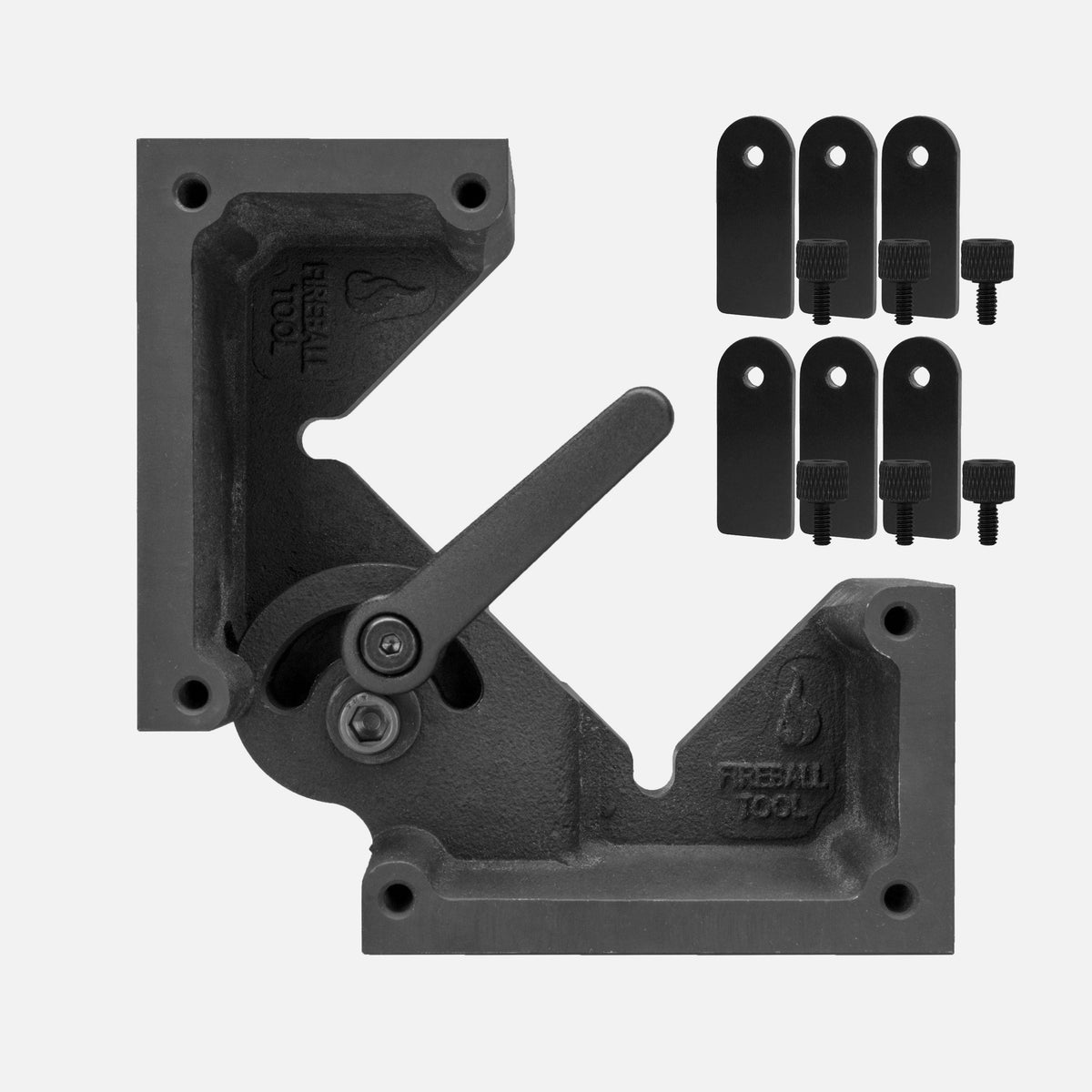

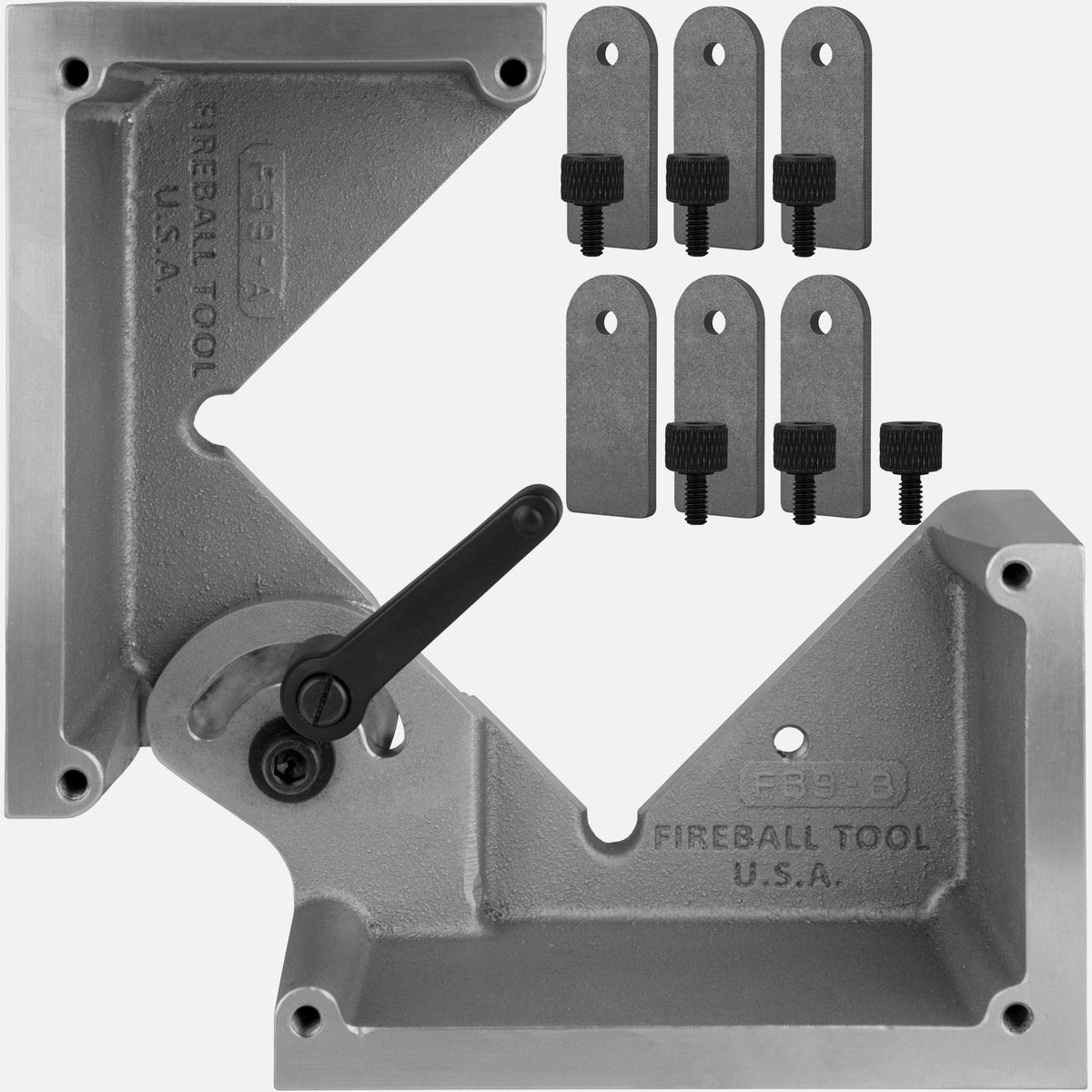

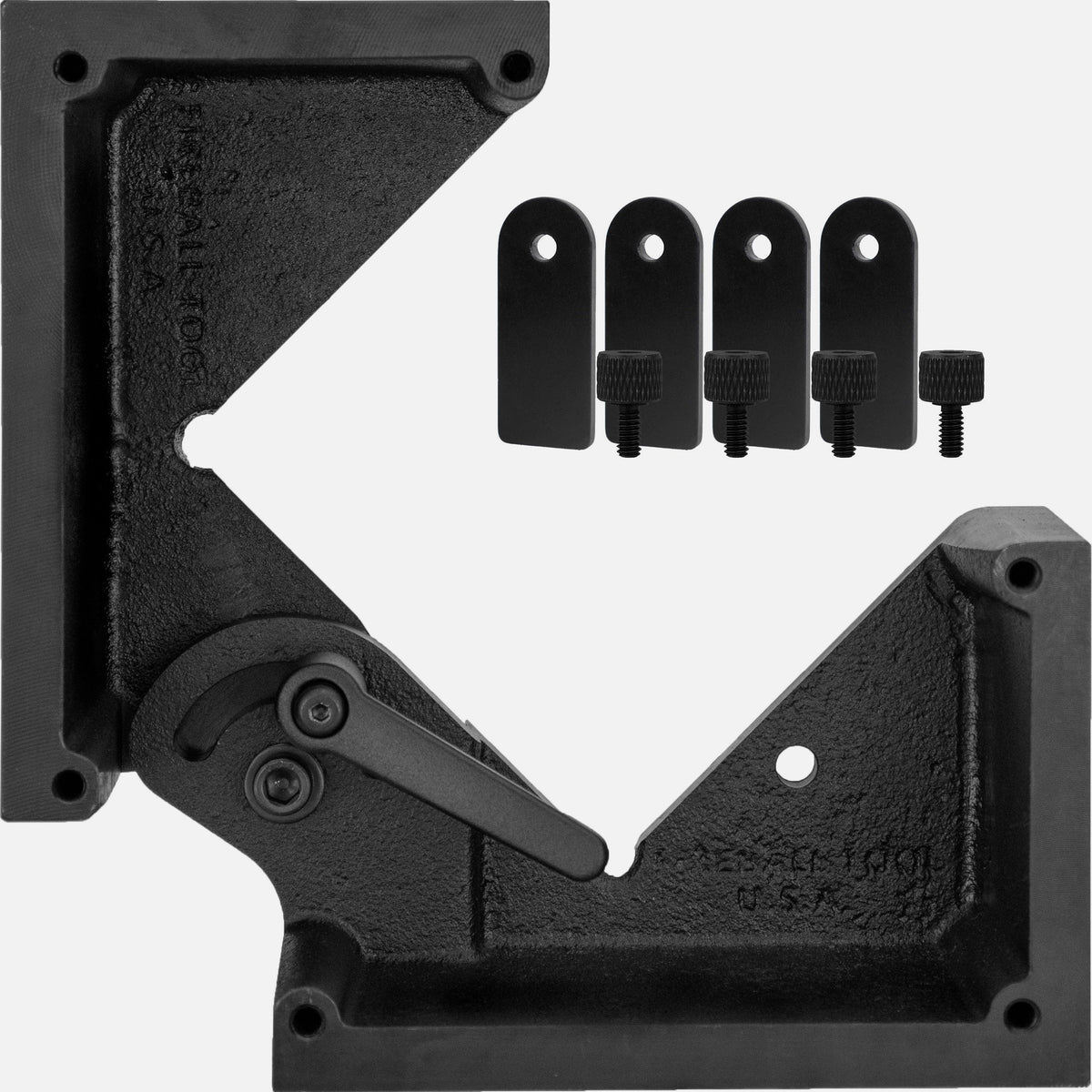

Included Alignment Accessories

The Magic Square includes Fireball Tool's alignment system to make positioning material easier—even if you don't have a dedicated fixture table.

The included tabs can be mounted on the front or back of the square to create reference surfaces for aligning material.

Tool-less thumbscrews allow the tabs to be adjusted by hand without searching for a hex key or Allen wrench.

Key Features

• Versatile adjustable welding and fabrication square

• Two individual squares in one system

• Separates for independent use

• Connects into five unique configurations

• Adjustable angle range from 40° to 180°

• Zinc adjustment handle

• Tool-free angle changes

• Works for 90° welding setups

• Creates acute and obtuse complementary angles

• Can function as V-blocks for round tubing and pipe

• Supports offset material positioning

• Multiple mating-surface configurations

• Designed for good weld access

• Available in 8" and 12" sizes

• Available in Cast Iron + Dragon Scale

• Available in Cast Aluminum

• 12" versions are Made in the USA

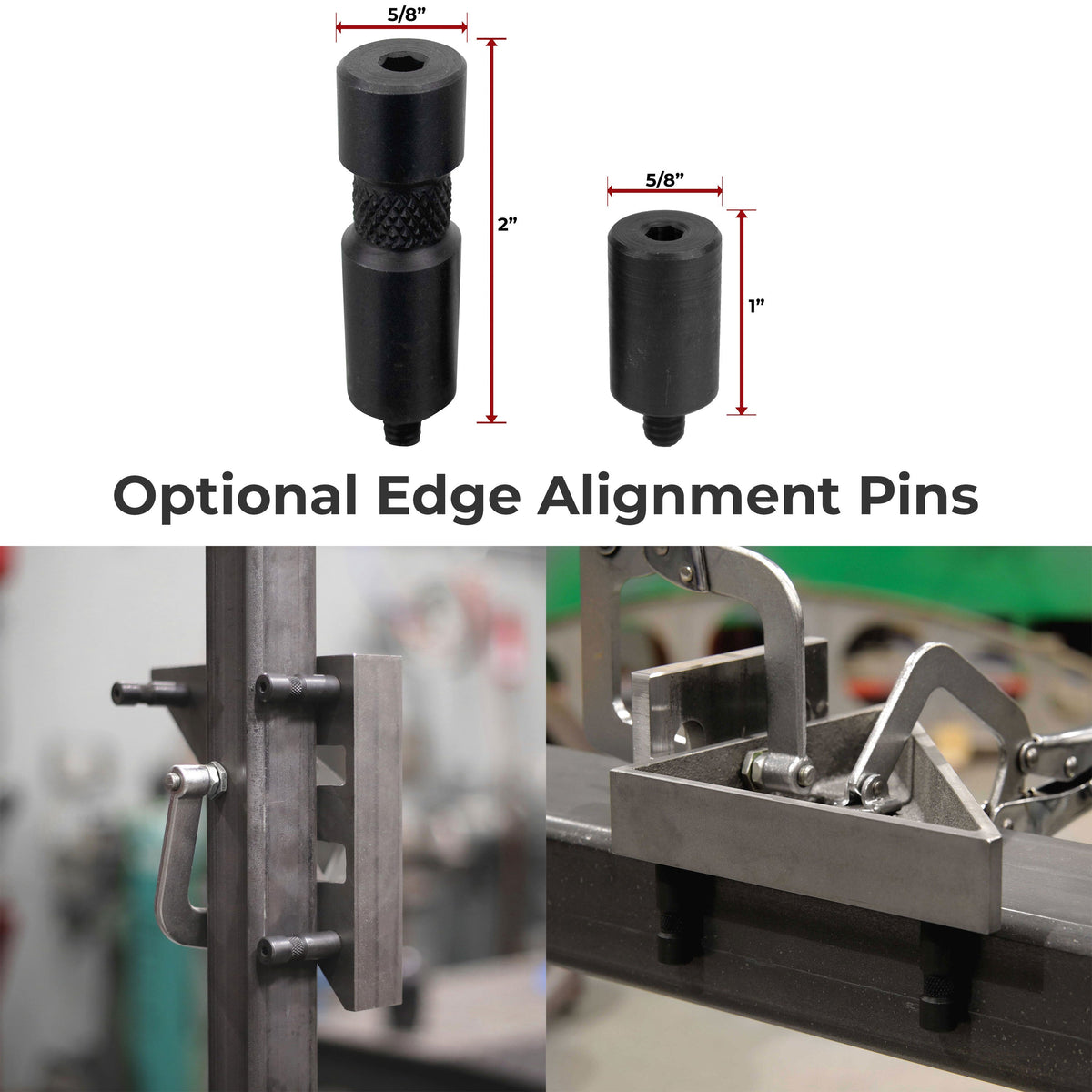

• Compatible with Fireball Tool alignment accessories

• Patented Fireball Tool design

One Square That Adapts to the Job

Most welding squares do one thing really well.

The Fireball Tool Magic Square is designed to do a whole lot more.

Use it as a 90° welding square. Adjust it for custom angles. Separate it into two individual squares. Use the halves as V-blocks for round material. Reverse the mating surfaces for offset setups. Then put it back together for the next job.

For welders and fabricators who regularly build something different, that's where the Magic Square really starts to make sense.

Change the angle. Change the configuration. Build what you need.
